DC52
Aluminum Alloy Dual USB-C Hub Multiport Adapter with Thunderbolt
- Overview
- FAQ
- Reviews
- Press Center

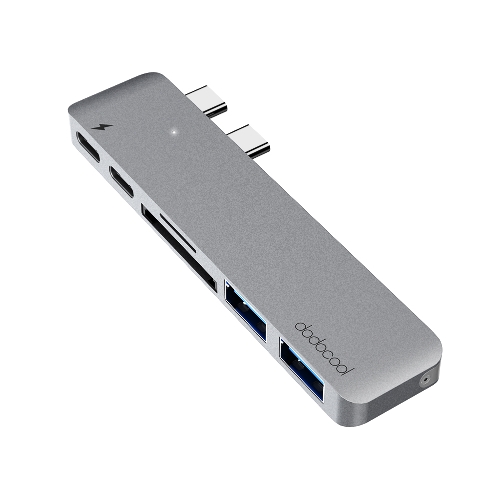

dodocool 6-in-1 Dual USB-C Multiport Hub is an ideal solution for your 13-inch or 15-inch MacBook Pro with two available Thunderbolt 3 (USB-C) ports. It enables you to transfer files through its Thunderbolt 3 USB 3.1 Type-C port port, USB 3.0 Type-C port, USB 3.0 Type-A ports and/or SD/TF memory card slots. You can also charge your MacBook Pro with your USB-C power adapter or stream videos of up to 5K (5120 by 2880 at 60Hz) to your TV, monitor or projector via the Thunderbolt 3 USB 3.1 Type-C port on this product.
Features
Premium Quality
Built with the aluminum alloy case, it is specially designed for 13-inch or 15-inch MacBook Pro (2016/2017) with two available Thunderbolt 3 (USB-C) ports.
Instant Expansion
Support data transfers via this product's Thunderbolt 3 USB 3.1 Type-C female port, USB 3.0 Type-C female port, USB 3.0 Type-A female ports and/or SD/TF memory card slots. Support HD video output or USB-C PD charging via the Thunderbolt 3 USB 3.1 Type-C female port.
Dual USB-C Port
The Thunderbolt 3 USB 3.1 Type-C female port supports Power Delivery (PD) of up to 100W for MacBook Pro, HD video output of up to 5K (5120x2880 @ 60Hz), and data transfer of up to 10Gbps and the USB 3.0 Type-C female port only supports data transfer of up to 5Gbps.
Dual SuperSpeed USB 3.0 Type-A Ports
Simultaneously connect up to 2 USB-A peripherals and transfer data at up to 5 Gbps. Backward compatible with USB 2.0 and USB 1.0 Type-A devices.
SD/TF Card Reader
Directly access files from an SD card and/or a TF card, up to 104MB/s. Support SD memory cards and TF memory cards of up to 512GB. (Memory cards are not included.)
Portable & Easy-to-Use
Thin (8.4mm), lightweight (22g) and compact. No driver required. Plug and play. Support hot swapping function.
Note:
1. The Thunderbolt 3 USB 3.1 Type-C female port supports USB-C data transfer, USB-C video output, and USB-C PD charging. The USB 3.0 Type-C female port support USB-C data transfer only and does not support USB-C video output or USB-C charging.
2. To achieve the maximum video resolution, compatible displays and cables are required.
3. It is NOT recommended to use USB 3.0 Type-A ports on this product for charging.
Specifications
Brand: dodocool
Material: Aluminum alloy
Color: Gray or silver (optional)
LED indicator light color: White
Compatible laptops:
For 13-inch MacBook Pro (2016/2017)
For 13-inch MacBook Pro with Touch Bar and Touch ID (2016/2017)
For 15-inch MacBook Pro (2016/2017)
For 15-inch MacBook Pro with Touch Bar and Touch ID (2016/2017)
System requirement: macOS Sierra or above operating system

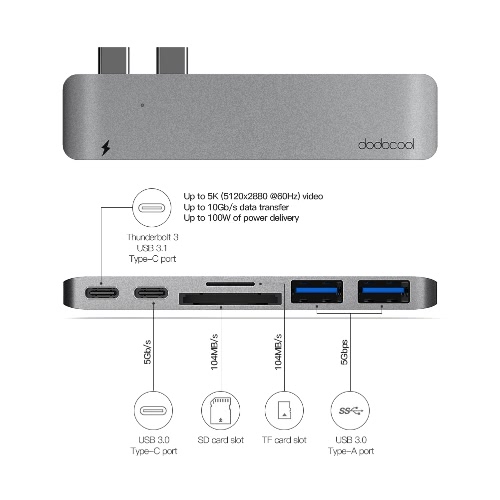

Interface:
1 * Thunderbolt 3 USB 3.1 Type-C port (Support charging, video output and data transfer)
1 * USB 3.0 Type-C port (Support data transfer only)
2 * USB 3.0 Type-A port
1 * SD card slot
1 * TF card slot
Video resolution (Thunderbolt 3 USB 3.1 Type-C port): Up to 5K (5120x2880 @ 60Hz)
Charging (Thunderbolt 3 USB 3.1 Type-C port): Up to 100W of power delivery
Data transfer (Thunderbolt 3 USB 3.1 Type-C port): Up to 10 Gbps
Data transfer (USB 3.0 Type-C port): Up to 5 Gbps
Data transfer (USB 3.0 Type-A port): Up to 5 Gbps
Compatible memory card types: (1) SD/SDHC/SDXC, SD 3.0 UHS-I memory cards and (2) microSD/microSDHC/microSDXC, microSD 3.0 UHS-I memory cards (memory cards are not included)
Supported capacity of memory cards: Up to 512GB
Read/write speeds: Up to 104MB/s
Certificate: CE, FCC, RoHS
Warranty: 12 months limited warranty
Item size: Approx. 3.79 * 0.88 * 0.33 in / 96.20 * 22.40 * 8.40 mm (L * W * H)
Item weight: Approx. 0.78oz / 22g
Package size: Approx. 4.29 * 1.30 * 0.59 in / 109.00 * 33.00 * 15.00 mm (L * W * H)
Package weight: Approx. 1.41oz / 40g
Package includes
1 * dodocool 6-in-1 Dual USB-C Multiport Hub
1 * Instruction Manual (English, French, German, Spanish, Italian, Japanese, Chinese)
